RevMax

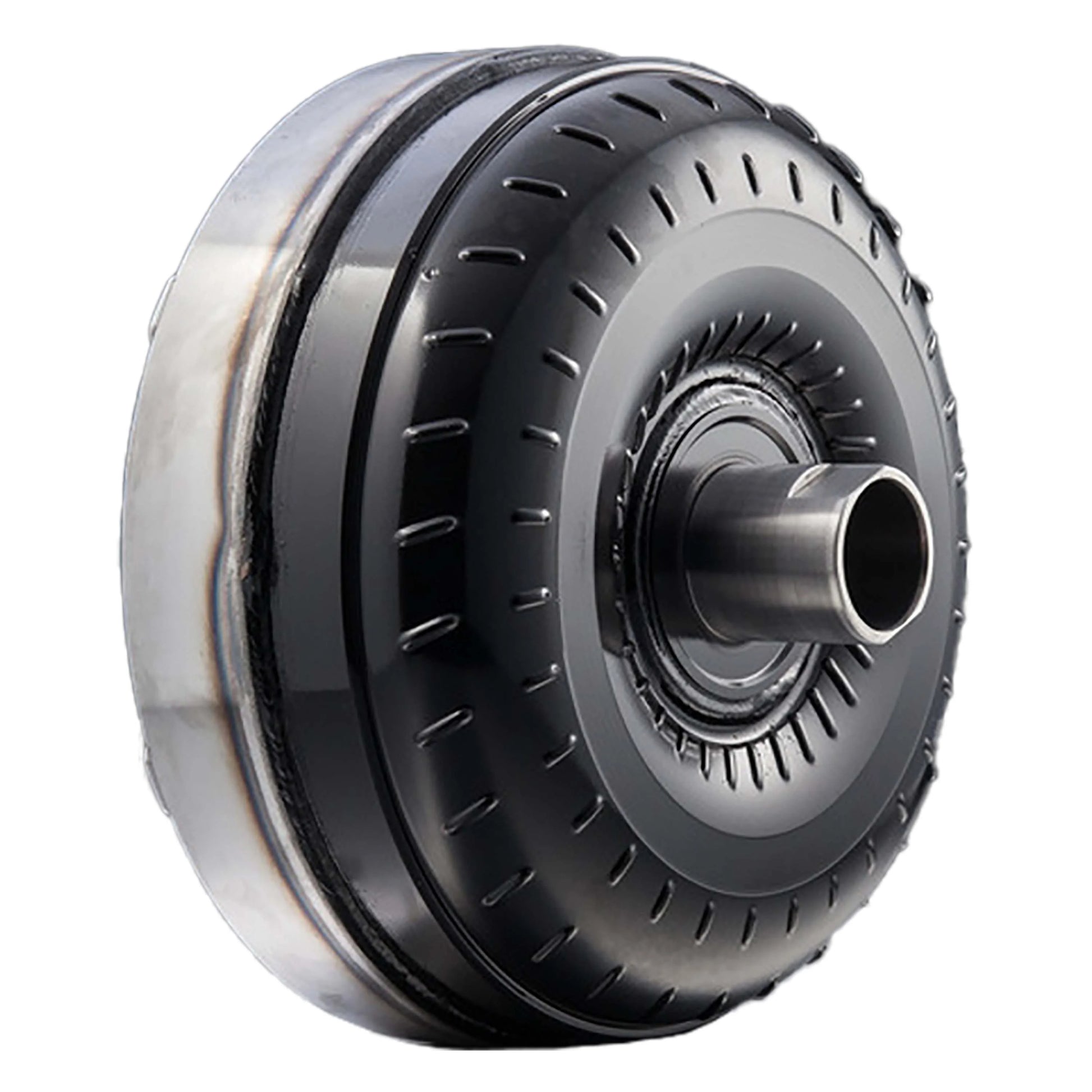

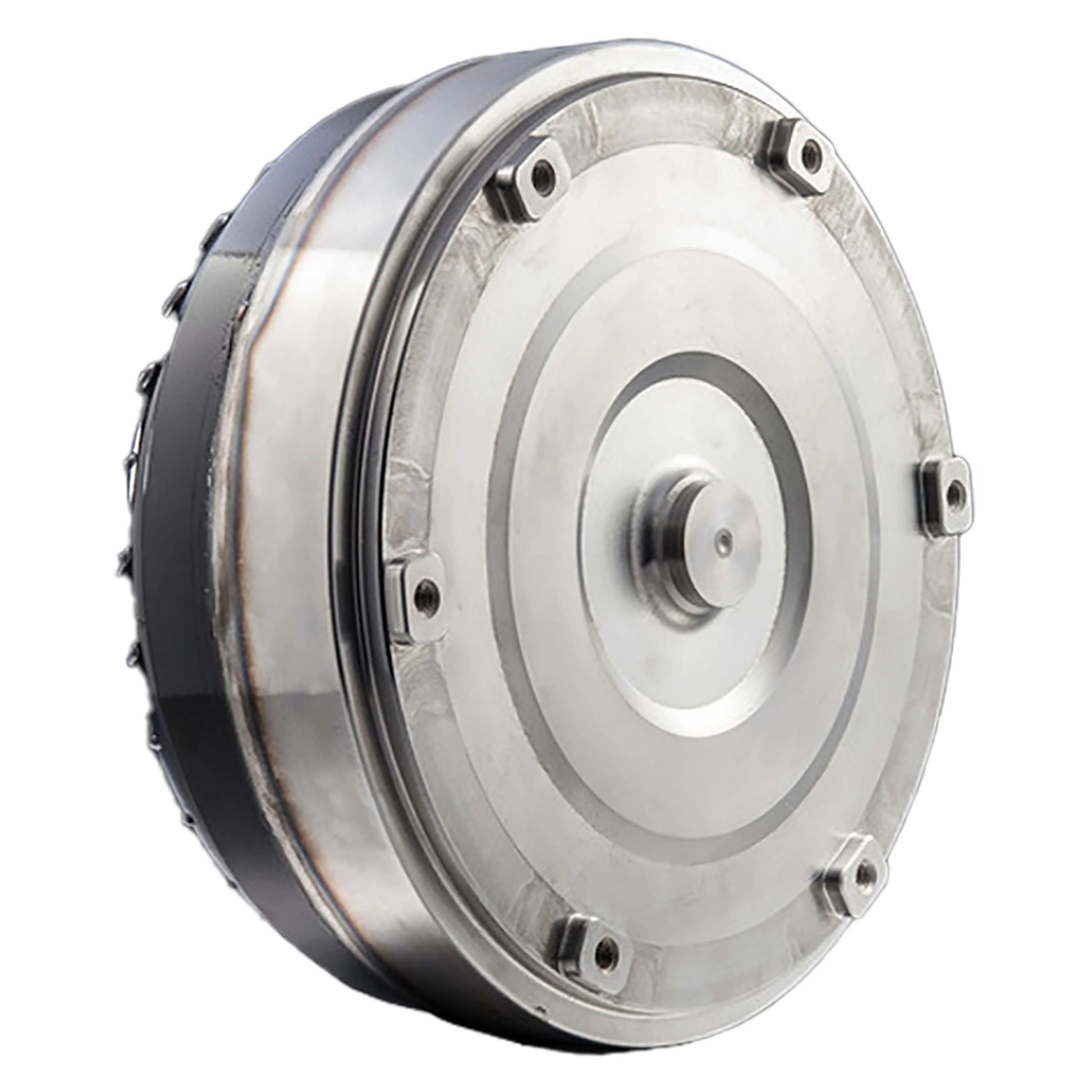

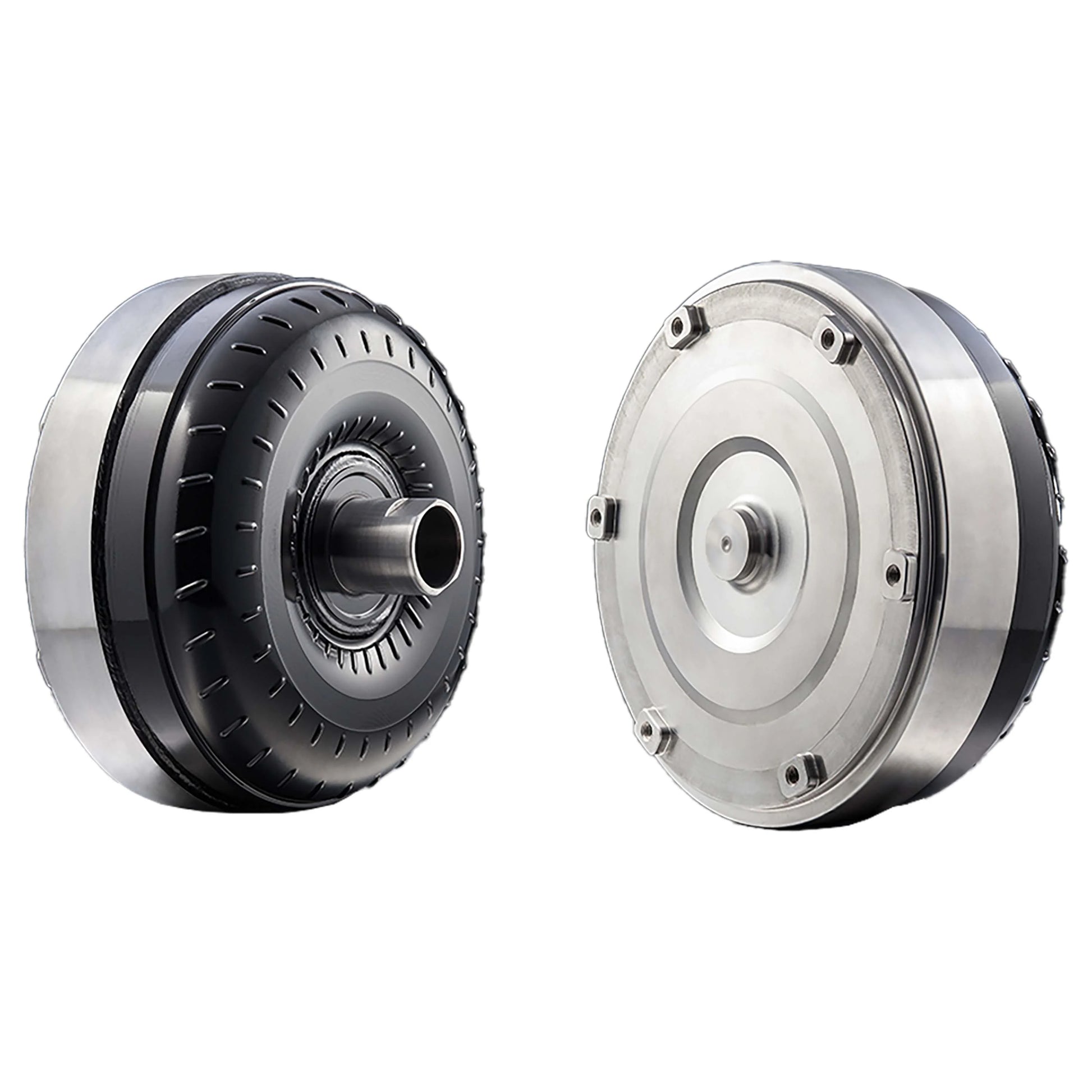

Stage 3 Torque Converter – Allison 1000

$895.50

Stage 3 Torque Converter – Allison 1000

Stage 3 Torque Converter – Allison 1000

Stall Speed
$895.50
$895.50
Shipping calculated at checkout.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Whether you need just a better than stock replacement torque converter or a full blown sled pulling converter, Revmax has you covered! Each Revmax diesel performance converter is custom made to your exact specifications. Stall speeds and efficiencies are precisely matched to your truck! This is not a one size fits all converter, this is a tailor made unit for your truck and only your truck. Regardless if your truck is stock, or heavily modified, our staff can get you EXACTLY what you need! With our huge array of impeller housing, stators and turbines, we can easily build you a converter that will make you grin from ear to ear! Once you try a Revmax converter, it will be clear why Revmax is known to produce the best converter on the market! Our stage 3 converters are designed for those who have either stock or lightly modified engines, and for those that tow light to medium weights. These converters work best when paired with our diesel performance valve bodies. Maximum torque for these units is 750ft lbs, or approximately 350-400HP. Our stage 3 converters feature the following innovations and components:

  • 1 YEAR UNLIMITED MILEAGE WARRANTY!
  • Billet Front Cover
  • Revmax custom EXCLUSIVE stator designs
  • Upgraded Revmax EXCLUSIVE Sprag Retainer
  • Upgraded Lockup Clutch Material
  • High performance seals
  • Upgraded Stator Billet Bearing Cap
  • Upgraded Dual Sided Torrington Bearing stator design
  • 4130 Chrome Moly Flanged Impeller Hub
  • Lowered Internal Clearance for Maximum Fluid Coupling
  • 4340 Hardened Turbine Hub and Splines
  • Furnace Brazed Impeller
  • Tig Welded Brazed Turbine
  • Torrington High Performance Stator Bearings
  • Torrington High Performance Turbine Bearings-
  • Computerized Robotic Sealing Welds
  • Precision internal clearances set to increase efficiency and improve performance
  • Fully pressurized and leak tested
  • Rust resistant high quality paint
  • TCRS Computerized High Speed Balancing To less than 5 gram
  • Runout Tolerances of less than .005
Product Market

Diesel
Stall Speed

Low Stall (-300 RPM), Ultra Low Stall (-500 RPM), Stock Stall
Core Charge

Refundable Core Charge – $350



Years

2016
2015
2014
2013
2012
2011
2010
2009
2008
2007
2006
2005
2004
2003
2002
2001

Makes

GM / Chevy

Models

2500HD
3500HD
Silverado

Engines

6.6l Duramax

Warranty & Returns

For Next Level Products:

*We accept returns within 10 days of receipt, as long as the transmission is in like-new condition and has not been installed. Please note that a 25% restocking fee applies, and customers are responsible for return shipping costs.

PLEASE GO HERE FOR MORE DETAILED INFO. & WARRANTY // RETURN INFO. FOR ALL PRODUCTS.

Transmission Shipping

Freight cost on shipping Transmissions is currently $875.00 to the lower 48 states but Next Level Engine & Transmission reserves the right to raise prices according to “going rates”. Freight costs are to cover shipping of the built unit and the return core. Cores must be returned within 2 weeks of receiving the new transmission.

​All cores are inspected for damage such as broken cases, broken shafts, excessive hard part failure. Next Level Engine & Transmission will deduct the cost of these replacement parts from the core money. Prices are based on replacement costs only. We are not interested in making money on broken parts only returning cores to a buildable state.

​Whenever possible, Next Level Engine & Transmission will supply a core return tag for parts that have core charges associated with them. Return shipping costs are factored into the final shipping costs on your invoice. Parts cores are expected to be returned within 10 days. Do not just assume that if your part is damaged that you will not receive a core return. Many parts are expected to have damage and are returned to the manufacturer as such.

VIEW OUR FULL SHIPPING POLICY HERE.

Core Refunds

All cores are paid out as soon as possible. All cores will be inspected before a refund will be issued.  Refunds are issued 1-2 weeks after inspection via direct deposit or other form or payment discussed with accounting department.

PLEASE GO HERE FOR FULL CORE RETURN INFORMATION AND DOCUMENTS.

INSTALL DOCUMENTS

PLEASE GO HERE FOR ALL PRODUCT INSTALLATION DOCUMENTS.

FAQs

PLEASE GO HERE FOR ALL FAQs.
