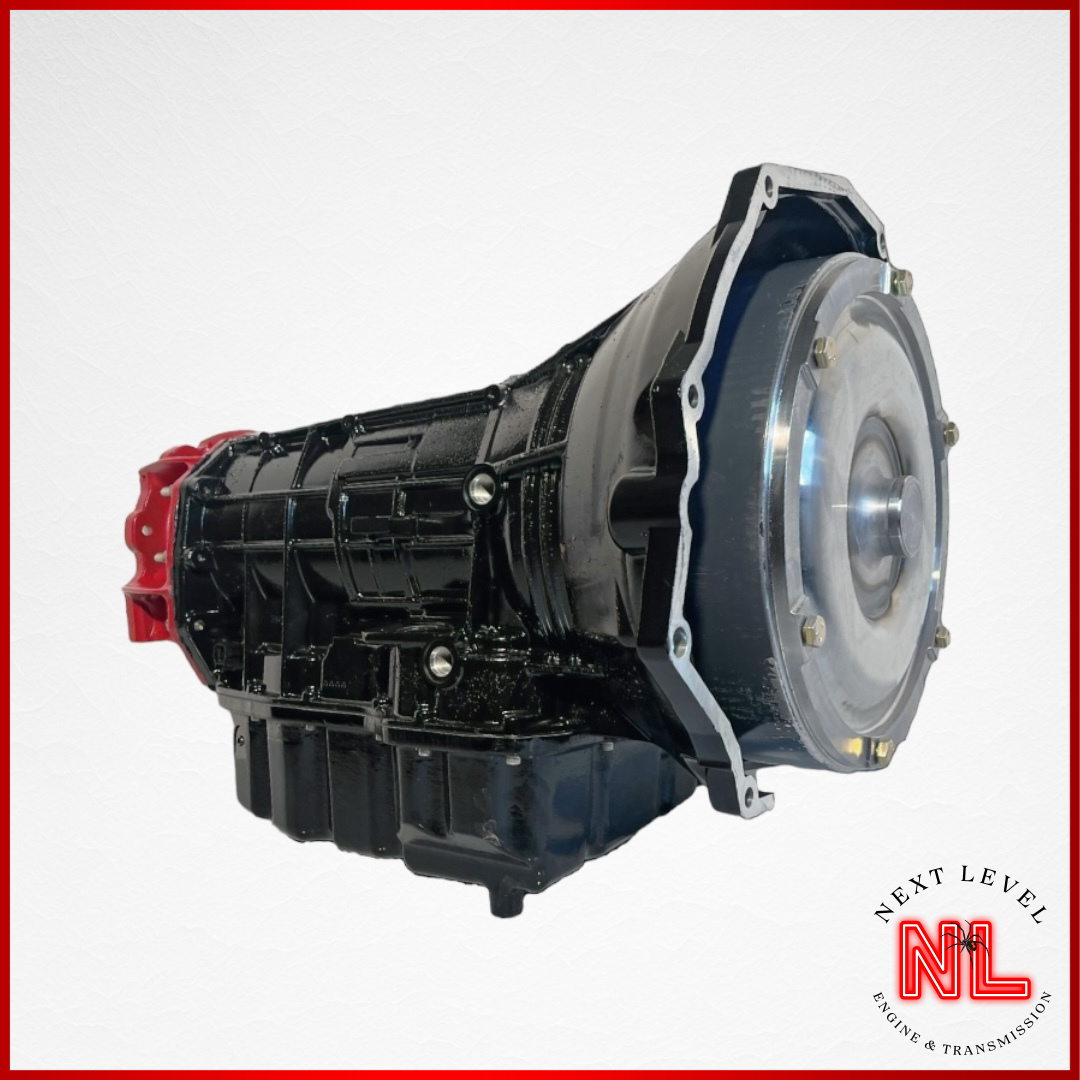

68RFE Black Widow 600
68RFE Black Widow 600
Download 68RFE Installation Instructions HERE.
:Our 600 Horsepower Rated 68RFE |
:Next level 16 clutch overdrive hub |
:Randys Transmission Multi Friction billet converter |
:Randys Transmission Heavy Duty Roller Sprag |
:Next Level High Performance Borg Warner Clutch Kit |
:Goerend Transmission Deep Pan |
:Next Level Billet 4C snap ring retainer |
:Next Level Billet 2C Piston |
:New Sonnax Pump Gear |
:Next Level 2C Clutch Count Upgrade |
:Next Level 4C Clutch Count Upgrade |
:New OEM Line Pressure Sensor |
:All new OEM seals and gaskets |
:OEM Filter Kit |
:Next Level High Pressure Valve Body with New OEM Solenoid pack, Billet Channel Plate, Billet acumulators, Performance SS Valve, High Perfromance Separator plate |
:Tig Welded Output Planets |
:Custom Next Level Paint Job |
TUNER INFORMATION FOR 68RFE BLACK WIDOW 600, AND SHOULD BE USED TO PROPERLY TUNE TRANSMISSION.
- LINE PRESSURE SET TO 225PSI ABOVE 30% THROTTLE ANGLE
- 100PSI RESTING PRESSURE
- NO LOCKUP UNTIL 4TH GEAR
- LOW/REVERSE SPRAG HOLDOUT
- FOR 2019+, UNDERDRIVE PULSE TEST MUST BE TURNED OFF
Share
Collapsible content
SHIPPING INFORMATION
-Shipping And Core Policy Terms
Freight cost on shipping Transmissions is currently $875.00 to the lower 48 states but Next Level Engine & Transmission reserves the right to raise prices according to “going rates”. Freight costs are to cover shipping of the built unit and the return core. Cores must be returned within 2 weeks of receiving the new transmission.
All cores are inspected for damage such as broken cases, broken shafts, excessive hard part failure. Next Level Engine & Transmission will deduct the cost of these replacement parts from the core money. Prices are based on replacement costs only. We are not interested in making money on broken parts only returning cores to a buildable state.
Whenever possible, Next Level Engine & Transmission will supply a core return tag for parts that have core charges associated with them. Return shipping costs are factored into the final shipping costs on your invoice. Parts cores are expected to be returned within 10 days. Do not just assume that if your part is damaged that you will not receive a core return. Many parts are expected to have damage and are returned to the manufacturer as such.
-Core Refunds
All cores are paid out as soon as possible. All cores will be inspected before a refund will be issued. Refunds are issued 1-2 weeks after inspection via direct deposit or other form or payment discussed with accounting department.
RETURN & WARRANTY POLICY
DOWNLOAD WARRANTY POLICY HERE.
*WARRANTIES ARE NON-TRANSFERRABLE*
HOT SHOT TRUCK DRIVERS: WARRANTY IS 12 MONTH / 12,000 MILES.
*PLEASE NOTE: IF YOU ARE INSTALLING A TRANSMISSION YOURSELF, IT IS YOUR RESPONSIBILITY TO HAVE THE TRANSMISSION COOLER FLUSHED BY A PROFESSIONAL PRIOR TO THE TRANSMISSION INSTALL. FAILURE TO DO SO, MAY RESULT IN CONTAMINATED FLUID AND OLD MATERIAL GETTING INTO THE NEW UNIT. POURING ATF THROUGH THE COOLER (or KOOLER KLEEN) IS NOT SUFFICIENT ENOUGH.
90-day limited workmanship warranty 90-day limited workmanship warranty will not cover broken cases or shafts of transmission. Abuse, misuse, or burn down due to operator error will void warranty. Any warranty work must be performed at Next Level Engine & Transmission. It is the vehicle owner’s responsibility to ship transmission or vehicle to Next Level’s location for all repairs needing to be performed. Any repairs to transmission not authorized by Next Level Engine & Transmission will void warranty and will not be covered by Next Level Engine & Transmission.
- 68RFE 2 Year unlimited mile limited warranty (Black Widow 500, 600 & 800)
68RFE 2 Year unlimited mile limited warranty will not cover broken cases or shafts of transmission including the 4th clutch hub. Any tires larger than a 35” tire must have proper gearing or warranty will be voided. Vehicle owner is responsible for having proper transmission tuning as transmission failure due to lack of tuning or improper tuning will not be a covered failure. Abuse, misuse, or burn down due to operator error will void warranty. Any warranty work must be performed at Next Level Engine & Transmission in Phoenix AZ. It is the vehicle owner’s responsibility to ship transmission or vehicle to Next Level’s location for all repairs needing to be performed. Any repairs to transmission not authorized by Next Level Engine & Transmission will void the warranty and will not be covered by Next Level. Line Pressure must be verified by a professional for warranty to be active.
-68RFE 1 Year 12,000-mile limited warranty (Black Widow 1000 and 1200)
68RFE 1 Year 12,000-mile limited warranty will not cover broken cases or shafts of transmission including the 4th clutch hub. Any tires larger than a 35” tire must have proper gearing or warranty will be voided. Vehicle owner is responsible for having proper transmission tuning as transmission failure due to lack of tuning or improper tuning will not be a covered failure. Abuse, misuse, or burn down due to operator error will void warranty. Any warranty work must be performed at Next Level Engine & Transmission in Phoenix AZ. It is the vehicle owner’s responsibility to ship transmission or vehicle to Next Level’s location for all repairs needing to be performed. Any repairs to transmission not authorized by Next Level Engine & Transmission will void warranty and will not be covered by Next Level. Line Pressure must be verified by a professional for warranty to be active.
-Appropriate gear ratios: -35" tire min gearing is 3:73 recommended 4:10 -37" tire min gearing is 4:10 recommended 4:30 -Larger than that should be running a 4:56 ratio.
