Next Level

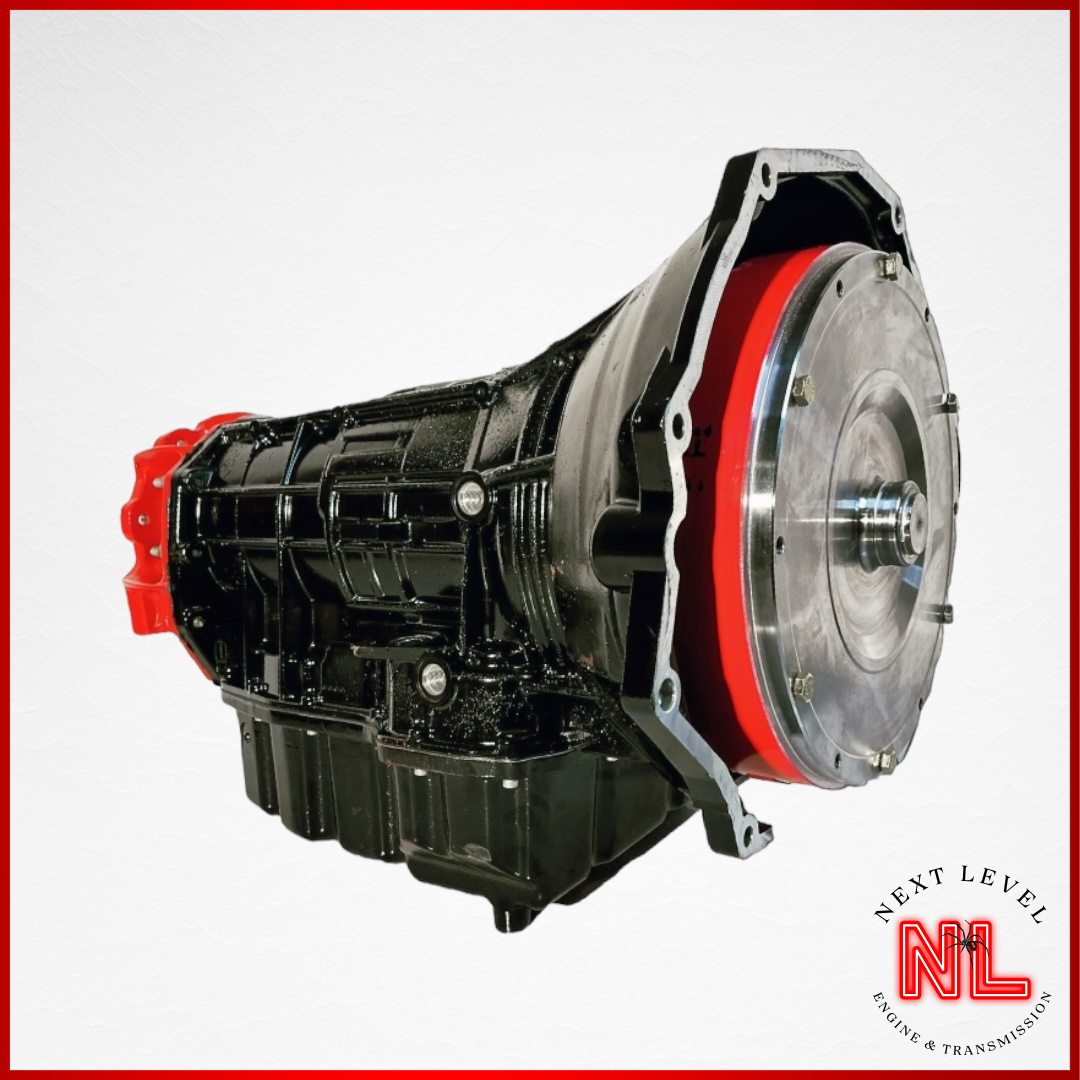

68RFE Black Widow 1000

68RFE Black Widow 1000

Regular price $13,330.00 USD
Regular price Sale price $13,330.00 USD
Sale Sold out
Shipping calculated at checkout.
Vehicle Year
SELECT ONE (REQUIRED)
Core Charge

Download 68RFE Installation Installation Instructions HERE.

:Our 1000 Horsepower Rated 68RFE
:Revmax XR 18 Overdrive Billet Steel Input Clutch Hub and Billet Drum
:Randys Transmission Triple Lock Converter
:Randys Transmission Heavy Duty Roller Sprag
:Randys Transmission Billet Input Shaft
:Revmax 300M One Piece FORGED Billet Overdrive Clutch Hub and Shaft Assembly
:Next Level High Performance Borg Warner Clutch Kit
:Goerend Transmission Deep Pan
:Next Level Billet 4C snap ring retainer
:Next Level Billet 2C Piston
:New Sonnax Pump Gear
:Revmax 2C Clutch Count Upgrade
:Revmax 4C clutch count upgrade
:New OEM Line Pressure Sensor
:All new OEM seals and gaskets
:OEM Filter Kit

:Next Level High Pressure Valve Body with Brand New OEM Solenoid Pack, Billet accumulators, Billet Channel Plate , Performance SS Valve, High Performance Separator plate

:Tig Welded Output Planets
:Custom Next Level Paint Job





TUNER INFORMATION FOR 68RFE BLACK WIDOW 1000, AND SHOULD BE USED TO PROPERLY TUNE TRANSMISSION.

  • LINE PRESSURE SET TO 225PSI ABOVE 30% THROTTLE ANGLE
  • 100PSI RESTING PRESSURE
  • NO LOCKUP UNTIL 4TH GEAR
  • LOW/REVERSE SPRAG HOLDOUT
  • FOR 2019+, UNDER-DRIVE PULSE TEST MUST BE TURNED OFF

*We will accept returns within 10 days of receipt provided transmission is like new and has not been installed. NLET charges a 25% restock fee and customer is responsible for return shipping.

View full details

Collapsible content

SHIPPING INFORMATION

-Shipping And Core Policy Terms

Freight cost on shipping Transmissions is currently $875.00 to the lower 48 states but Next Level Engine & Transmission reserves the right to raise prices according to “going rates”. Freight costs are to cover shipping of the built unit and the return core. Cores must be returned within 2 weeks of receiving the new transmission.

​All cores are inspected for damage such as broken cases, broken shafts, excessive hard part failure. Next Level Engine & Transmission will deduct the cost of these replacement parts from the core money. Prices are based on replacement costs only. We are not interested in making money on broken parts only returning cores to a buildable state.

​Whenever possible, Next Level Engine & Transmission will supply a core return tag for parts that have core charges associated with them. Return shipping costs are factored into the final shipping costs on your invoice. Parts cores are expected to be returned within 10 days. Do not just assume that if your part is damaged that you will not receive a core return. Many parts are expected to have damage and are returned to the manufacturer as such.

-Core Refunds

All cores are paid out as soon as possible. All cores will be inspected before a refund will be issued.  Refunds are issued 1-2 weeks after inspection via direct deposit or other form or payment discussed with accounting department.

RETURN & WARRANTY POLICY

*We accept returns within 10 days of initial payment of purchase. NLET charges a 25% restock fee and customer is responsible for return shipping.

PLEASE GO HERE FOR MORE DETAILED INFO & ALL WARRANTY, CORE RETURN & INSTALL DOCUMENTS.
